WVM 2900/3900 C
WVM 2900/3900 C
Vertical machining centres with travelling gantry for universal machining of steel and cast iron
The unified WVM 2900/3900 C series vertical machining centres are designed for universal machining of work-pieces made of steel and cast iron, especially in the general engineering sector. The design comprising a bottom travelling gantry (X), transverse travel headstock (Y) and vertically extending ram (Z) ensures high precision, stability and rigidity. The 53 kW power installation allows powerful and productive machining of even large workpieces.
The machines are typically used for machining a wide range of workpieces, especially frame structures. Also for complete part machining, including rotary surface machining. Thanks to the open workspace, the handling of parts is easy and flexible.
Flexible solution for demanding operations

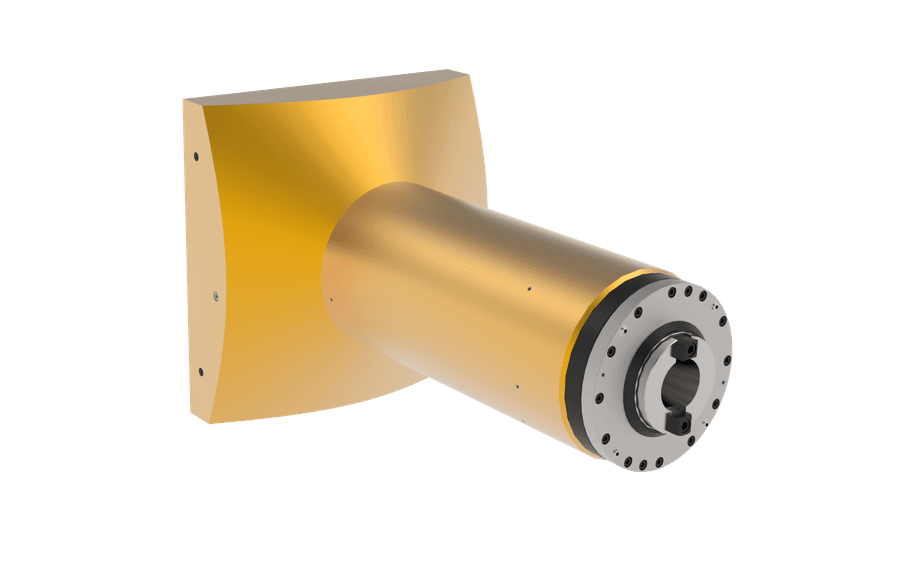

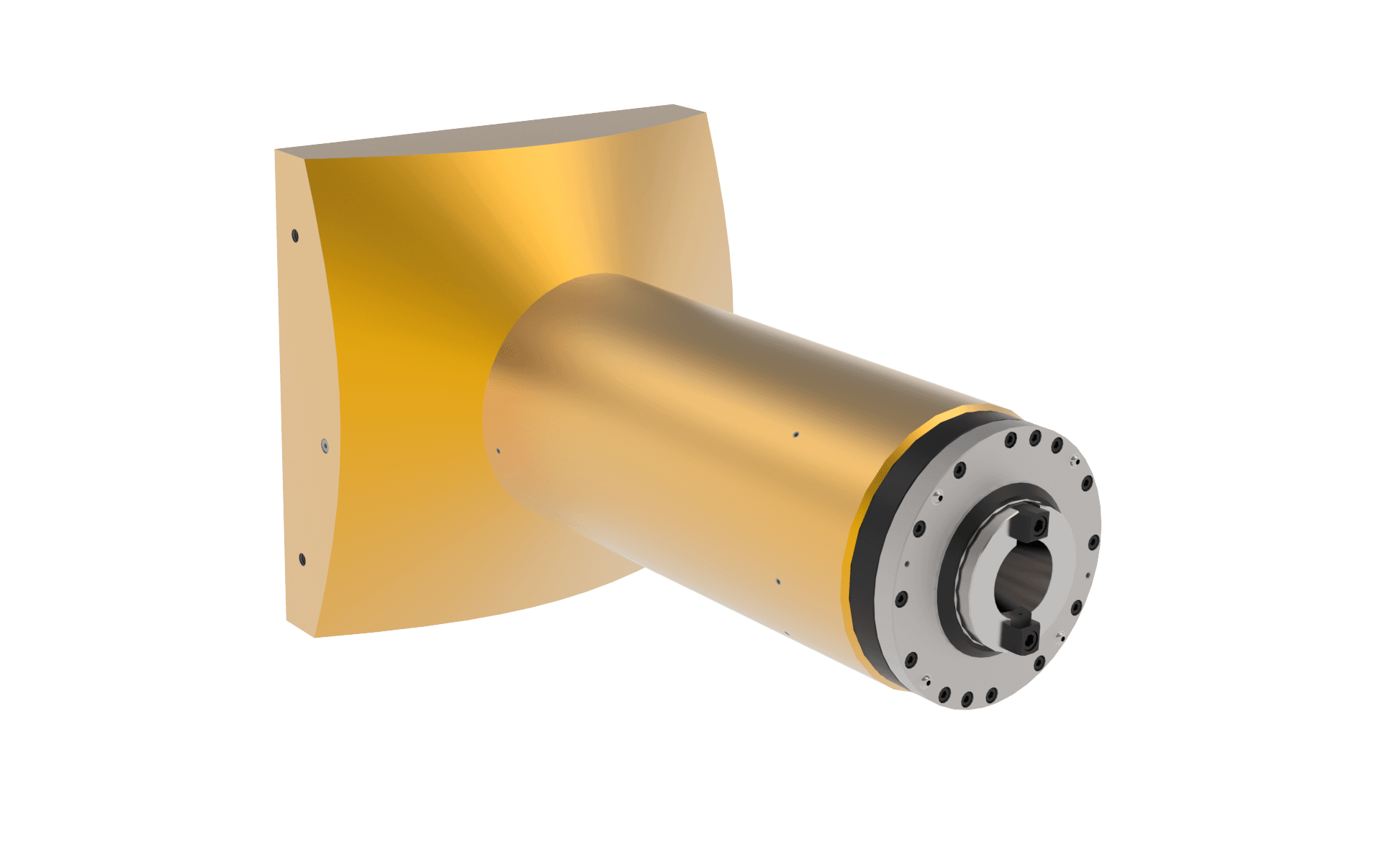

The machines can be equipped with a wide range of automatically interchangeable milling heads, which expands their technological possibilities, including the application of carousel operations. Of course accessories such as automatic tool change, cooling and machine monitoring can be added.
The machine is operated from the platform installed on the side of the column. For higher operational safety and comfort, the workspace can be equipped with a cover that minimises chip flight and coolant spray.
Key benefits:
- High rigidity and precision thanks to the gantry design
- Great versatility of use thanks to the optional application of a carousel table
- Automatic milling head and tool changing
- Easy workpiece handling in an open workspace
- Variable workspace arrangement with up to 20 m length
- HIGH RIGIDITY AND PRECISION
- EASY HANDLING OF WORKPIECES
- OPEN WORKING AREA
- CAROUSEL TABLE APPLICATION
- WORKING SPACE LENGTH UP TO 20 m
MACHINE CONFIGURATION
- wide range of clamping plates inc. various type of tables
- RAM with interface for changing of various types of milling heads
- various types of ATC system
