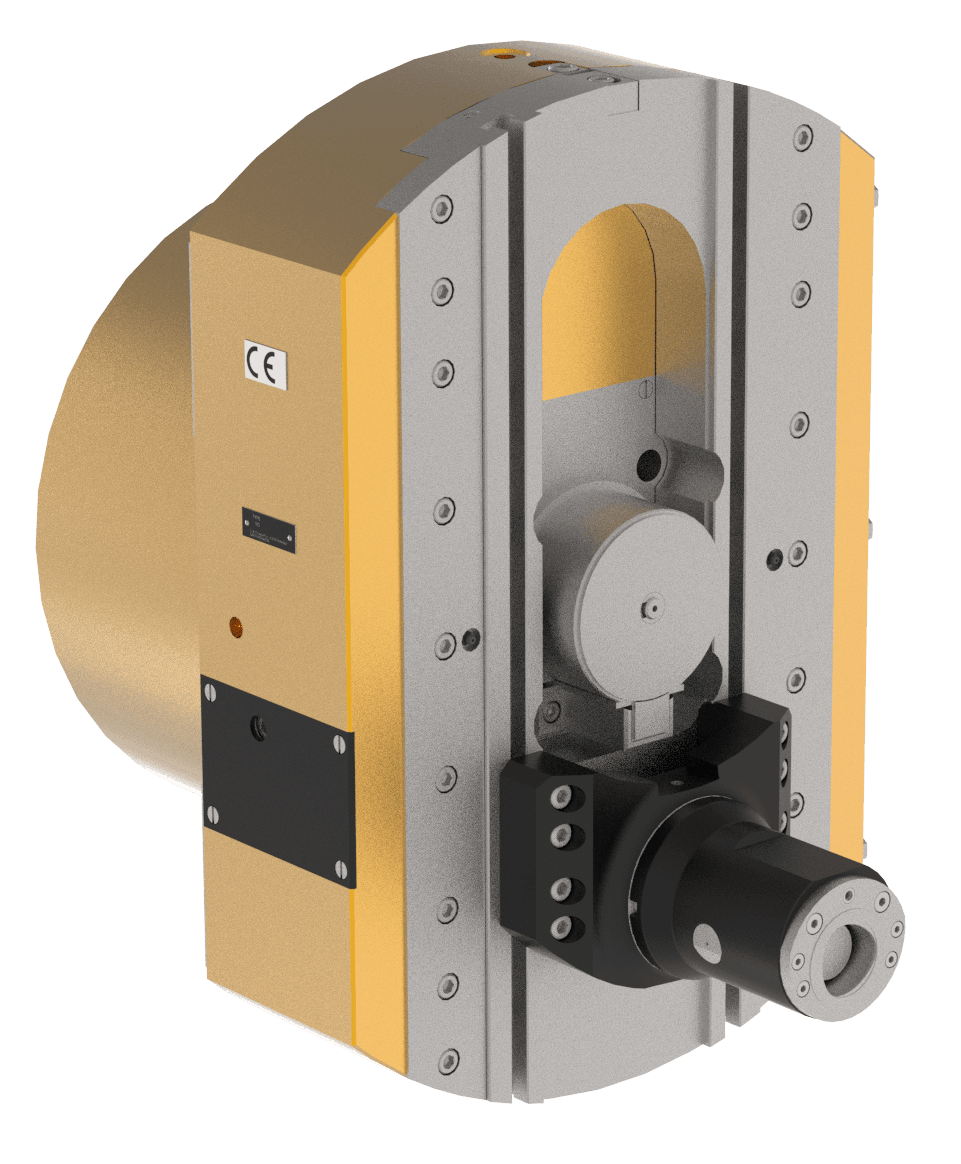

LD 650 – universal face plate

The LD 650 model is a universal faceplate comprising a rotating base body with an axial hole and a transversely guided slide.

The design enables the use of the machine’s working spindle for precise feed control.

Thanks to its robust design and high rigidity, it is suitable for precise face turning and hole boring.

  • Basic body diameter (mm): 650
  • Adjustment of the slide (mm): 170
  • Max. working speed of the facing plate (RPM): 150
  • Max. allowed speed when using the machine main spindle (RPM): 200
  • Range of slide work feed (mm/min): 1-1,000
  • Slide rapid traverse (mm/min): 1,000
  • Max. diameter of front turning (mm): 1,000
  • Boring diameter range (mm): 300-1,000
