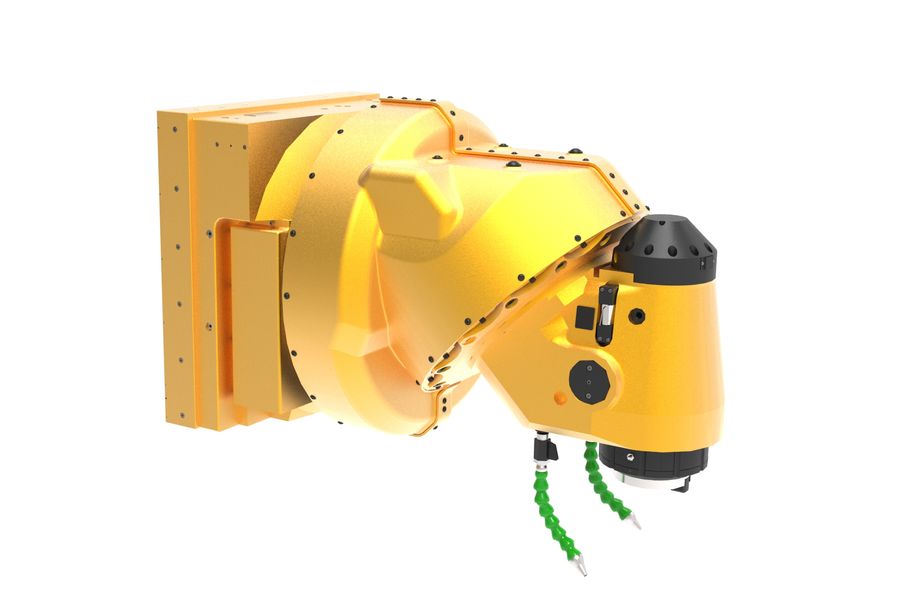

HUF 50

The universal continuously positioned HUF 50 head consists of three compactly connected basic parts with the possibility of their mutual rotation. The positioning
of the adjustable parts of the head is derived from the rotational movement of the machine spindle. Continuous positioning is ensured by means of servomotors, which enable rotation of the Hirth toothing and a subsequent step of 0.001° in both axes A and C.

  • number of axes: 2
  • speed (rpm): 3,000
  • power (kW): 32
  • torque (Nm): 1,000
  • weight (kg): 610
  • positioning: index 0.001°
